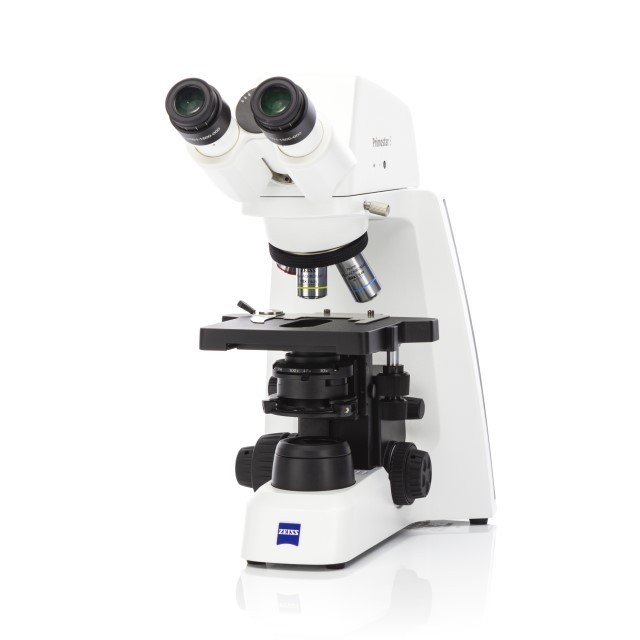

Primostar 3, fix-K, bi, cam, FOV20, 4 pos, ABBE 0.9, 75x40 Complete configuration with fixed-Köhler stand including - Transmitted-light illumination LED 1W white-light, 5600K - 4-position nosepiece, tilted backwards - mechanical rackless stage 75x40, drive right and specimen holder for one slide with spring clip left - binocular tube 25°/22 with integrated camera 8MP - eyepieces 10x/20 Br.foc. with eyecups - objectives iPlan-Achromat 4x, 10x, 40x - Abbe condenser0.9/1.25 with slot - 5V USB port - Country-specific power cable - dust cover - 5 years warranty Camera specification Sensor: Sony CMOS image sensor Color, Rolling Shutter Number of Pixel: 3840 (H) x 2160 (V) = 8.3MP, Ultra HD (4K) Selectable Resolution: 3840 x 2160 = Ultra HD (4K) and 1920 x 1080 = Full HD (1080p) Pixel size: 1.85 µm x 1.85 µm Effective Area: 7.1 mm x 4.0 mm, equivalent to 1/2.1" (8.15 mm diagonal) Spectral range: approx. 400 nm – 700 nm, IR filter Stand-alone: Image storage format: TIFF or JPG Video stream format: mp4 Live frame rate via HDMI: 30 fps @ 4K/1080p (also with HDR) Live frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms: H x V Frame rate 3840 x 2160 up to 15 fps (ZEN blue edition) 1920 x 1080 up to 27 fps (ZEN blue edition) 1920 x 1080 up to 30 fps (Labscope) Digitization: 8-bit/pixel Integration time: 0.06 ms up to 1 s Interfaces for Communication: HDMI for monitor USB 3.0 Type C for USB hub, flash drive, Wi-Fi adapter or, PC connection Ethernet (RJ45) for LAN connection Optical interface: integrated adapter Max. file size per image: .tiff up to: 24 MB (not content dependent) .jpg up to: approx. 0.5 MB – 3.3MB (content dependent) Size/Weight: approx. 135 x 97 x 54mm / 590 g Passive cooling by aluminium cooling fins on the cover plate Environmental conditions: +10°C to +40°C, max. 75% relative air humidity at 35°C, no condensation, free air circulation required Operating systems for Labscope: Windows 7/10 x64 Prof./Ultimate and iOS v11 and higher/Android 9.0 and higher Supported Application Software: Labscope v4.0 (Win, iOS and Android) and later and higher The camera is network-enabled and can be used with the ZEISS iOS App/Android App on Google Store or ZeissPortal and Labscope software. The App is available as a free download from the Apple® App Store or GoogleStore. Unless otherwise stated by the distributor, iPad® and WLAN router are not supplied by ZEISS. Apple® iPad Pro® iPhone® are registered trademarks of Apple Inc.
